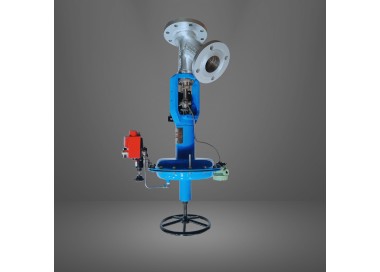

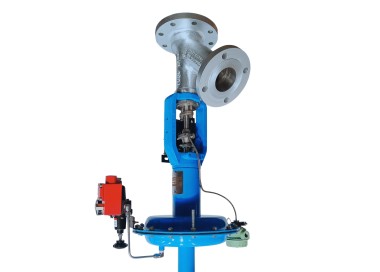

High Pressure Flush Bottom Valve

Quantity

Technical Specifications

  • Design: Plug Type
  • Valve Size: 40 to 200 mm (1.1/2" to 8")
  • End Connection: Flanged
  • Characteristics: On-Off
  • Seat: PTFE Soft Seat
  • Actuator Type: Diaphragm, Cylinder or Electric
  • Actuator Action: Direct / Reverse Acting.
  • Diaphragm: Nitrile
  • Spring ranges: 3 – 15 PSIG (0.2 – 1.0 Kg/cm²) 6 – 30 PSIG (0.4 – 2.0 Kg/cm²)
  • Air Supply: 20 – 35 PSIG (1.4 – 2.5 Kg/cm²)
  • Air Connection: 1/ 4" to 6"
  • Handwheel: Top or Side Mounted Handwheel
  • Accessories: Airset, Solenoid Valve, Air Lock, Volume Booster, Limit– Proximity Switches etc.

Description and Specifications of High Pressure Flush Bottom Valve

A High Pressure Flush Bottom Valve, also known as a bottom or drain valve, serves a specific purpose in reactors and tanks by facilitating the drainage or sampling of materials. It is designed for vessels with threaded openings, allowing for the efficient removal of slurry or product residues. When fully open, this specialized valve ensures a smooth flow of substances through streamlined inlet and outlet orifices, preventing any material from becoming trapped and guaranteeing the purity of subsequent batches.

During operation, the valve functions smoothly: upon opening, the plug or disc lifts to create a pathway for materials to empty from the tank, while upon closure, it forms a tight seal with the tank's bottom, preventing any material from escaping. The High Pressure Flush Bottom Valve is categorized into two main types: the 'Ram' type, primarily used for dislodging solid deposits due to its high-pressure capabilities, and the 'Y' type, favored for its self-draining design and versatility in handling various substances. It is easy to install in any application.

The advantages of High Pressure Flush Bottom Valves, are manifold. They are crucial to preventing cross-contamination between batches, reducing waste, and enhancing operational efficiency. Additionally, their design aids in maintaining the purity of substances within the vessel, contributing to overall process integrity.

Similarly, a pressure safety valve (PSV) or pressure relief valve (PRV) is a critical safety measure to protect equipment from potentially dangerous pressure increases. Commonly employed in pressure vessels, boilers, and piping systems, these valves help mitigate the risk of accidents by releasing excess pressure. At Shilpent, we produce and offer high-quality flush-bottom valves in bulk at competitive prices.

Features of High Pressure Flush Bottom Valve

  • The valve removes leftover buildup in tanks, vessels, and reactors. It makes sure everything drains completely.
  • Robust stainless steel makes the valve last a long time.
  • It seals tightly when closed, so nothing leaks while it is being used.
  • The valve can be opened and can be closed automatically or manually. It can be automated with hydraulic, electric, or pneumatic power depending on the need.
  • The valve controls how fast material comes from tanks, vessels, or reactors.

Applications of High Pressure Flush Bottom Valve

High Pressure Flush Bottom Valve finds application across various industries, leveraging their advantages to eliminate leftover substances from pipelines or contamination. In the chemical sector, the valve is crucial in mixers or reactors, ensuring thorough drainage. Similarly, it clears residues from tanks to prevent contamination and uphold cleanliness standards in the food and beverage. In pharmaceutical manufacturing, the valve is indispensable for ensuring the thorough discharge of substances during production and crucial for preventing sludge and sediment accumulation in tanks and equipment.

Safety Instructions for the High Pressure Flush Bottom Valve

  • Always wear safety glasses and gloves, and consider using a face shield or safety suit, depending on the materials being handled.
  • Check the seals carefully to prevent leaks, as it is crucial.
  • Avoid over-tightening the valve, as it can damage it. Operate it within the specified pressure range.
  • Regularly service and clean the valve according to the manufacturer's instructions.
  • Please do not exceed the High Pressure Flush Bottom Valve's pressure rating, as high pressure can damage or rupture it.
  • Consider the valve's temperature rating. If the material is not compatible, excessive heat can damage or degrade it.
  • Ensure proper installation, orientation, and support of the valve.
  • Only trained personnel should operate the valve to reduce the risk of accidents.
  • Know the emergency procedures to minimize harm or damage in case of a malfunction or accident.

Why Choose Shilpent?

Choosing us for High Pressure Flush Bottom Valve needs means choosing quality, excellent customer service, and industry expertise. We are the supplier of top-notch products made from durable materials, ensuring longevity, superior performance, and adherence to industry standards. Our commitment to the best pricing and customer satisfaction sets us apart.

Customer satisfaction is our top priority, and we tailor solutions to meet individual needs. Our team contains professionals with deep industry knowledge who provide expert advice and suitable solutions. With over 14 years of experience manufacturing high-quality nanotechnology products, we can efficiently produce large quantities of High Pressure Flush.

SE-HPFBV
