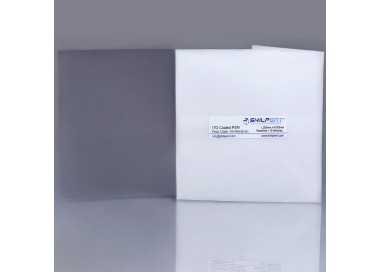

ITO Coated Pen Sheet

Details and Specifications of ITO Coated Pen Sheet

The ITO Coated PEN sheet (Indium Tin Oxide coated Polyethylene Naphthalate) is a transparent, conductive substrate featuring an Indium Tin Oxide layer applied via magnetron sputtering on one surface, with the other remaining insulated. With its superior light transmittance, this film is highly suitable for advanced applications like dye-sensitized solar cells, as it offers excellent thermal stability and chemical resistance.

As a flexible, ready-to-use material, the ITO Coated PEN film is ideal for fabricating various flexible electronics, including touchscreens and sensors. Variants with low sheet resistance are well-suited for applications demanding high conductivity, such as transparent electrodes in thin-film solar cells, electrochromic devices, and thin-film switches. High resistance versions are commonly employed in touchscreen production for mobile communication devices.

PEN, with a chemical structure similar to polyethylene terephthalate (PET), exceeds PET in terms of physical and mechanical strength, gas barrier efficiency, chemical and UV resistance, heat tolerance, and radiation durability. The significantly higher cost of PEN compared to PET limits its broader adoption despite its superior properties.

Technical Specifications of ITO Coated Pen Sheet

Developed for the electronics industry, it offers superior properties to PET film, including a thermal stability 45°C higher than PET and corresponding to F-grade thermal performance. It is used across various applications as it exhibits enhanced mechanical performance and lower gas permeability. The ITO Coated PEN sheet is available in sheet form, with a standard size of A4. We also provide custom dimensions tailored to meet the specific needs of researchers. The recommended thickness for the sheets is 125 microns, while the ITO layer thickness ranges from 150 nm to 180 nm.

Features of ITO Coated Pen Sheet

• Resistivity - 12 ohms/sq
• Sheet Thickness - 0.125 mm
• ITO layer thickness - >150nm
• Transmittance > 75%
• Size – 100mm x 100mm, 100mm x 200mm, 297mm x 210mm
• Surface Roughness (RMS) - < 2 nm
• PEN film's glass transition temperature (Tg) is 120°C, which is 42°C higher than that of PET films
• Coating method: Magnetron sputtering
• PEN is 3-5 times more moisture, oxygen, and carbon dioxide resistant than PET.
• PEN has more stable and higher chemical and mechanical stability.
• The long-term use temperature of PET is 120 °C, while PEN is 160 °C.
• PEN has better UV-blocking performance. It can block UV rays below 380nm.
• The mechanical properties of PEN are 50% higher in both Young's modulus and tensile elastic modulus than PET.

Applications of ITO Coated Pen Sheet

ITO Coated PEN sheet is used in many industries because of its unique features, such as high light transmission, strong EMI and RFI shielding, and resistance to heat and impact. It is commonly found in display technologies such as LCDs, optoelectronic devices, transparent heaters, and touch panel electrodes. It can also replace ITO Coated PET in smart films for better performance.

The sheet is great for shielding against electromagnetic and radio-frequency interference, supporting touch panels, providing heated clear display filters, preventing static electricity, and working in solar cells. It is widely used in automotive, aerospace, medical imaging, research, military, and consumer electronics, including smartphones and tablets. Its flexibility and reliability make it ideal for advanced technologies in various fields.

How to use ITO Coated PEN Sheet?

• Before use, ensure the work area is clean and dust-free to prevent sheet contamination.
• Use gloves to handle the material to avoid fingerprints or oils on the surface.
• Minimize direct contact with the coated side to avoid contamination.
• Use precision tools like laser cutters or fine blades to cut the sheet without damaging the ITO coating.
• Apply the sheet to the intended surface using appropriate adhesives or mounting techniques.
• Eliminate air bubbles, if any, through proper alignment.
• When using the sheet in electronic devices, ensure the conductive side faces the required circuitry. Verify conductivity with a multimeter before proceeding.
• Keep unused sheets away from humidity and direct sunlight to avoid warping or deterioration.
• When transporting the sheet, ensure it is well-protected in a rigid container to avoid bending or breakage.
• Use protective films or coverings during handling.
• Use non-abrasive tools to handle the sheet.
• Avoid exposing the sheet to extreme temperatures during handling, which may affect the ITO layer's conductivity and adhesion.

Safety Guidelines

• Wear appropriate PPE, gloves, and safety goggles, especially during cutting or handling.
• The workspace must be adequately ventilated to minimize inhalation of fumes emitted during the procedure.
• Avoid harsh chemicals or solvents on the sheet, as these can damage the coating. Use only approved cleaning solutions.
• Handle with care to prevent sharp edges from causing cuts or injury. Use appropriate tools when cutting or shaping the sheet.
• Protect the sheet from static electricity by grounding yourself and using ESD-safe equipment.
• Store and use the sheet away from open flames or high-temperature sources to prevent combustion or material degradation.
• Follow local regulations for disposing of ITO coated materials.
• Follow material safety data sheet (MSDS) for guidelines on first aid procedures in the event of injury or exposure to the material.

Why Choose us?

Shilpa Enterprises provides affordable, research grade ITO coated PEN substrates and cost-effective alternatives to other expensive transparent conductive oxides (TCOs). We prioritize customer satisfaction by ensuring high quality and precise specifications. We are the manufacturer and supplier of the products tailored to our customer's needs at competitive prices. Our products are sourced from authorized suppliers and made using top-quality raw materials and cutting-edge technologies. Our ITO Coated PEN sheet is highly valued for its large surface area, durability, resistance to thermal shock, dimensional precision, and long service life. We supply these sheets to automotive companies, aerospace industries, display technology firms, research and development organizations, and educational institutions
