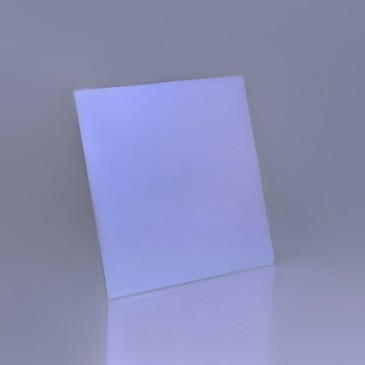

AZO Coated Glass
      AZO Coated Glass
      AZO Coated Glass

      AZO Coated Glass

      $81.00
      Thickness :
      L x W :
      Pack :
      Quantity :

      Main Highlights

      • Produce Code - AZOSE
      • Resistivity - ≤ 10 ohms/sq.
      • Transmittance - ≥ 81%
      • Coating Thickness - 850 nm
      • Substrate Thickness - 3.2 mm
      • Maximum operating temperature is 600 °C.
      • Made for LCD's, RF-EMI shielding, solar cell fabrication, optoelectronic devices, photovoltaics, etc.

      AZO Coated Glass Specifications and Details

      The Aluminium doped Zinc oxide (AZO) coated glass is a transparent conductive oxide (TCO) over a soda-lime glass substrate. It has manufactured by using target sputtering method. It is a transparent conductive glass substrate with transmittance greater than 81%. The AZO coated glass is a single side coated slides, whereas the other side is insulated. It is not easy to identify the conductive side with bare eyes. It is suggested to a used multimeter or four-probe method to confirm the coated side.

      AZO coating serves as a cost-effective and environmentally friendly alternative to traditional conductive coatings such as ITO, making it ideal for large-scale and research-based applications. The material exhibits low sheet resistance, high visible light transmittance, and good thermal stability, allowing it to perform efficiently even under elevated temperatures.

      Manufactured using precision sputtering techniques, AZO coated glass ensures uniform coating thickness and consistent electrical properties across the surface. Its single-side conductive layer makes it suitable for applications where controlled conductivity and insulation are required.

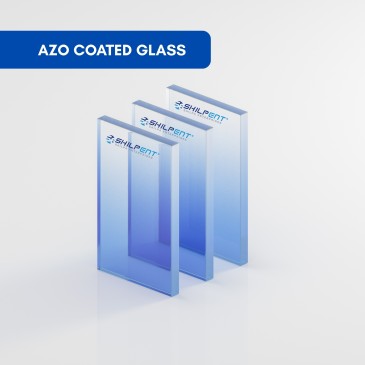

      AZO Coated Glass

      Technical Specifications of AZO Coated Glass

      ParameterSpecification
      Product TypeAluminum-doped Zinc Oxide (AZO) coated glass (TCO)
      Substrate MaterialSoda-lime glass
      Coating TypeAZO (Al-doped ZnO) – single side coated
      Coating MethodTarget sputtering
      Sheet Resistance≤ 10 Ω/sq
      Optical Transmittance≥ 81% (visible range)
      Coating Thickness~800 – 850 nm
      Substrate ThicknessTypically 3.2 mm (also 1.1 mm available)
      Surface Roughness (RMS)~2 nm
      Haze≤ 10%
      Resistance Uniformity≤ 10% variation
      Maximum Operating TemperatureUp to 600°C
      Standard Sizes25×25 mm, 50×25 mm, 50×50 mm, 75×25 mm, 100×100 mm
      Maximum SizeUp to 304.8 × 304.8 mm
      Conductive SideSingle-side conductive, other side insulated
      IdentificationRequires multimeter / four-probe method
      TransparencyHigh transparency conductive substrate
      ApplicationsLCDs, RF-EMI shielding, solar cells, photovoltaics, optoelectronics
      AZO Coated Glass Features

      Dimensions & other details

      The AZO coating or layer thickness is 800 - 850nm, and the resistivity is around 10 ohms/sq.cm. The surface of the substrate is quite smooth, but the surface roughness (RMS) is 2nm. The maximum size produced is 304.8mm x 304.8mm in a 3.2mm plate thickness. Our standard sizes are 25mm x 25mm, 50mm x 25mm, 50mm x 50mm, 75mm x 25mm, and 100mm x 100mm. The uniformity of resistance and Haze is less than 10%. It is beneficial for heating applications since its maximum operating temperature is 600 °C.

      The AZO coated glass is less popular as compared to ITO and FTO glass, but it is the best economical option for many applications. It is mainly utilized in the LCD's, RF-EMI shielding, solar cell fabrication, optoelectronic devices, photovoltaics, etc.

      Conductive Glass Comparison: AZO vs FTO vs ITO

      Compare the key properties of Aluminum-doped Zinc Oxide (AZO), Fluorine-doped Tin Oxide (FTO), and Indium Tin Oxide (ITO) conductive glass.

      ParameterAZO GlassFTO GlassITO Glass
      Full FormAluminum-doped Zinc OxideFluorine-doped Tin OxideIndium Tin Oxide
      Sheet Resistance10 – 200 Ω/sq7 – 15 Ω/sq5 – 100 Ω/sq
      Optical TransparencyHigh (80–90%)High (~80–85%)Very High (80–90%)
      Thermal StabilityHigh (~400–500°C)Up to 600–700°CUp to ~350°C
      Surface StructureSmooth / Slightly texturedRough / HazySmooth
      Electrical ConductivityModerateModerateExcellent
      DurabilityGoodHigh (abrasion resistant)Moderate
      CostVery LowLowHigh
      Environmental ImpactEco-friendlyModerateIndium scarcity
      Processing / EtchingEasyEasyModerate
      Best Use CasesFlexible electronics, low-cost devicesSolar cells, high-temp processesTouchscreens, OLED, sensors
      Key AdvantageLow cost + eco-friendlyThermal stability + durabilityHighest conductivity + clarity
      Key LimitationLower conductivity than ITOLower conductivity than ITOExpensive, lower heat resistance

      Applications

      In modern electronic and optoelectronic devices, it is used as a transparent conductive layer, combining high optical transparency with good electrical conductivity. It is commonly found in OLEDs, LCDs, touchscreens, sensors, and flat-panel displays, where both clear visibility and efficient electrical performance are required. On touchscreen devices, these coatings help the screen detect touch input while maintaining a clear, smooth display. In energy applications, it is used as a front conductive layer in thin-film, crystalline silicon, perovskite, and tandem solar cells. Its transparent nature allows sunlight to pass through easily, while the conductive layer efficiently carries an electrical charge.

      Its radiation resistance and stability make it suitable for aerospace and satellite devices. It is also used in smart and electrochromic windows, where it helps regulate light transmission and control heat, improving building energy efficiency and indoor comfort. In RF-EMI shielding applications, it reduces electromagnetic interference while maintaining transparency. It is used in gas sensors, biosensors, surface acoustic wave devices, and piezoelectric devices because of its conductive and surface-sensitive properties.

      It is commonly used as a conductive base and electrode surfaces in laboratory work, semiconductor manufacturing, and micro- and nano-scale fabrication. Its smooth surface, transparency, and conductivity make it useful for thin-film coating, nanoscale structures, and research on advanced materials.

      How to Use?

      • Check the glass carefully for scratches, chipped edges, or coating marks before using.
      • Always place the coated side facing upward before starting fabrication or assembly work.
      • Keep the work area clean and free from dust to prevent contamination on the glass surface.
      • Use lint-free gloves and hold the glass only by its edges while handling it.
      • Move the glass sheets with vacuum lifters, plastic tweezers, or other soft-contact tools to avoid damage.
      • Blow away loose dust with filtered air or nitrogen before starting the process.
      • Clean the glass only when needed, using approved solvents and lint-free cloths or wipes.
      • Make sure the glass surface is fully dry before any coating, printing, or deposition work begins.
      • Apply light and even pressure while fitting the glass into frames, holders, or fixtures.
      • Perform cutting and shaping operations from the uncoated side whenever possible.
      • Remove glass particles and debris immediately after cutting or drilling operations.
      • Store unused sheets vertically using cushioned separators between each sheet.
      • Maintain low humidity and stable room temperature during storage and operation.

      Safety Measures

      • Wear safety goggles, cut-resistant gloves, a lab coat, and safety shoes while handling the glass.
      • Handle the glass carefully and avoid dropping, bending, or putting uneven pressure on it.
      • Do not place heavy tools or equipment on the coated glass surface.
      • Protect the material from sudden temperature changes, extreme heat, or rapid cooling.
      • Use proper ventilation while working with solvents, etchants, or cleaning chemicals.
      • Unless approved, strong acids, alkalis, or abrasive compounds should not be used on the coating surface.
      • Keep food, liquids, and unnecessary materials away from the processing area.
      • Remove damaged or contaminated glass sheets from usable materials as soon as they are identified.
      • Use proper collection tools when handling broken glass.
      • Throw broken glass and chemical waste only into the marked industrial waste containers.
      • Clean the work area after processing to avoid particle contamination during later operations.
      • Follow all laboratory or facility safety rules during fabrication, transportation, and storage work.

      Quick Selection Guide

      • Choose AZO Glass: Best for low-cost, eco-friendly, or flexible applications
      • Choose FTO Glass: Ideal for high-temperature processes like solar cells
      • Choose ITO Glass: Perfect for high conductivity and transparency (displays, sensors)

      Download AZO Glass TDS (Technical Datasheet)

      Why Us

      We produce and supply uniform AZO coating at Shilpa Enterprises, whereas a patterning or etching service for this product is discontinued. We also offer customized dimensions on demand. Download the datasheet for more technical specification details.

      AZOSE-S025-001-10
